Application:

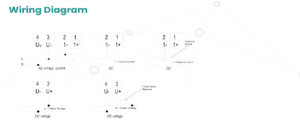

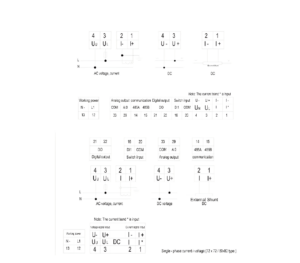

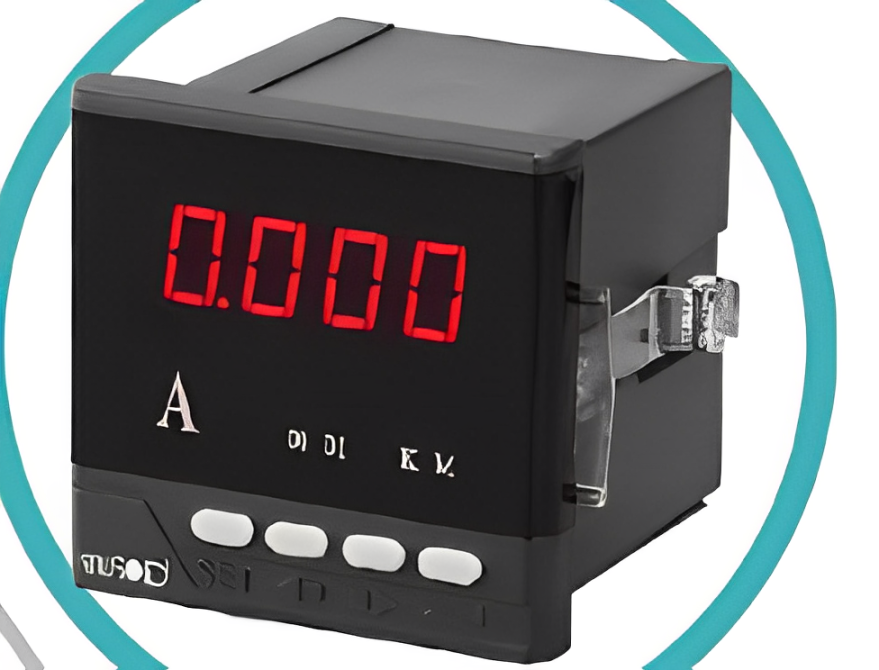

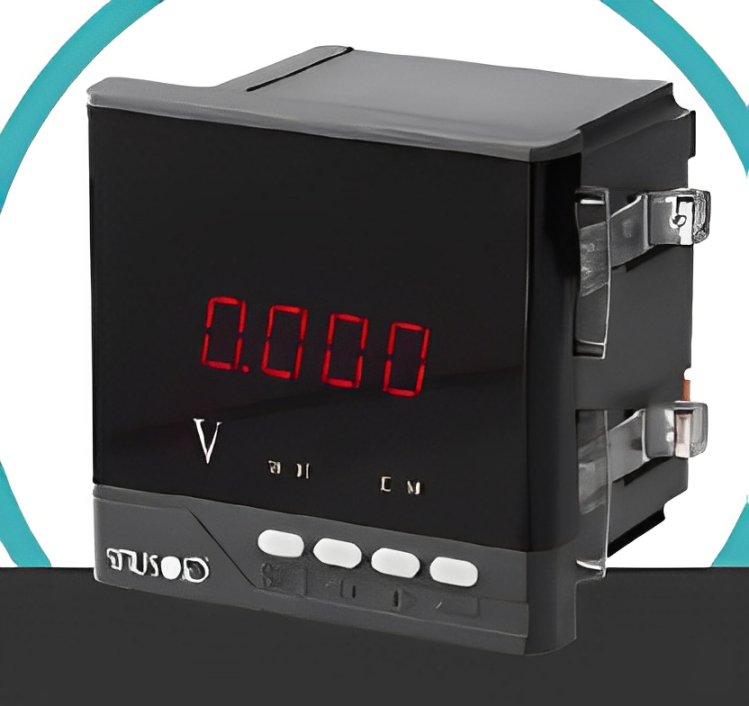

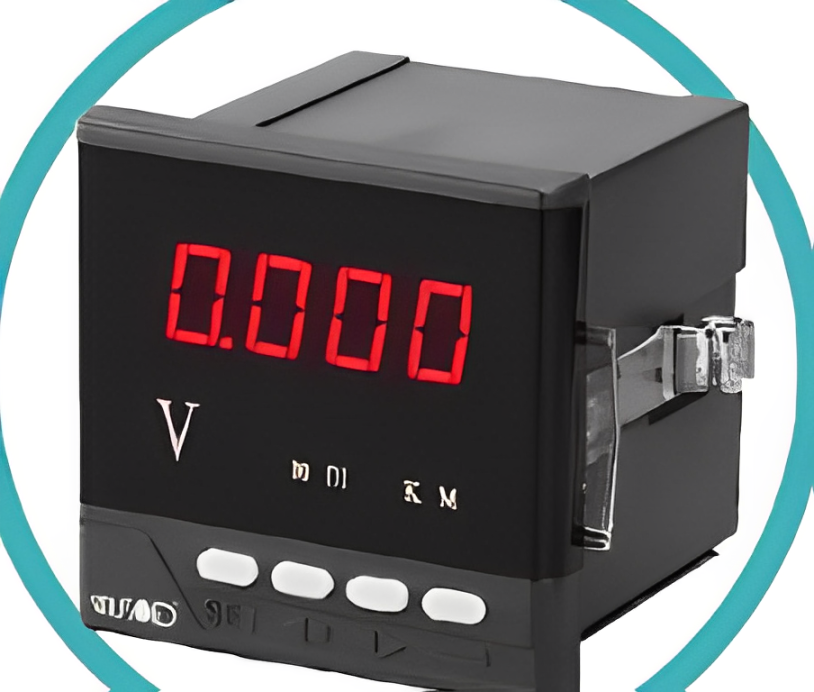

SINUSOID SS1 series programmable digital display electrical meters replaces the single quantity analogue panel meters and measures important electrical system parameters such as AC Voltage (single phase and three phase) and AC Current (single phase and three phase) on 1-phase, 2-wire networks, 3-phase, 3-wire networks as well as 3-phase, four-wire networks.
SINUSOID SS1 series digital display meter can be used in various installations such as the ones in residential, commercial, industrial, mining, public facilities, intelligent building controls and other related installations.
Features:
- Quick and easy installation
- True RMS measurement
- Bright LED display options:
- 1 line, 4 digits (up to 9999)
- 3 lines, 4 digits (up to 9999)
- On-site programmable Current Transformer (CT) and Potential Transformer (PT) ratios
- User-selectable external CT secondary (1A/5A)
- Rated voltage: 100VAC/400VAC
- Four function keys for quick access to desired screens
- Configurable for 1-phase, 2-wire, 3-phase, 3-wire, or 3-phase, 4-wire setups
- Standard auxiliary power: 220VAC (default) or 85-265V AC/DC wide range
- Compact design, even with optional features
- Optional RS485, MODBUS-RTU protocol
- Optional relay output
- Optional pulse output
- Optional analogue output
- Optional switch input
Parameters
- Basic Parameters V, I, Hz (As per choice)
- Power Parameters
- Energy Parameters
- Demand Parameters
- Power Quality Parameters PF (As per choice)
Ordering Summary
SS1
- Auxiliary Supply
- Standard AC 220V, 1ph
- Universal AC/DC 85^250V

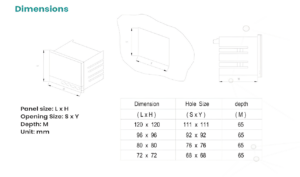

- Dimensions
- 120×120
- 96×96
- 80: 80×80
- 72: 72×72
- 48:48×48
- 80:80×80
- 9648: 96×48
- Function code
- U: Voltage
- I: Current
- F: Frequency
- PF: Power Factor
- Phase
- 1: Single Phase
- 3: Three Phase
- D: Digital Display
